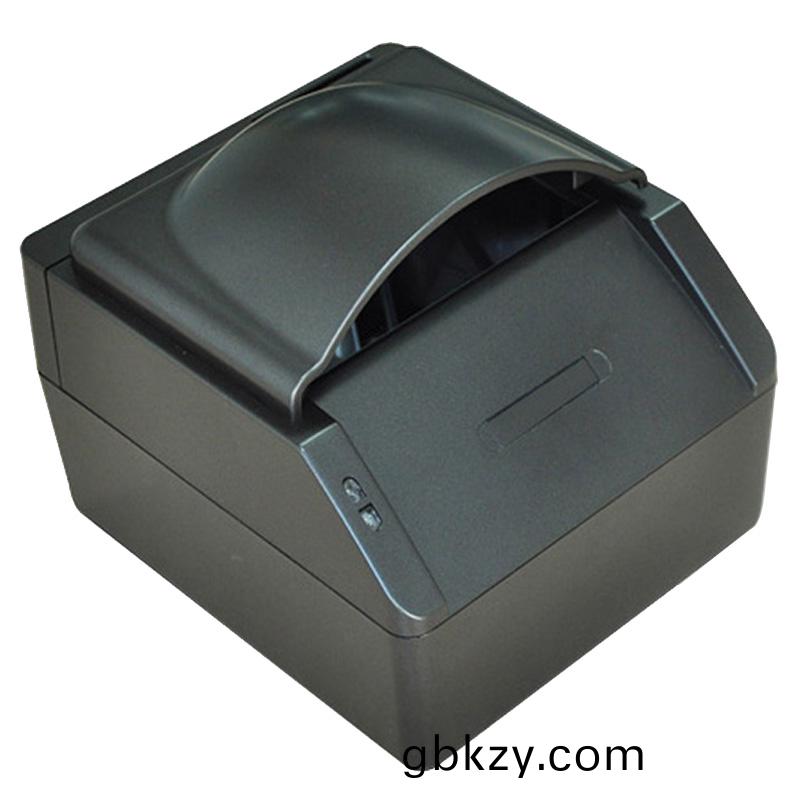

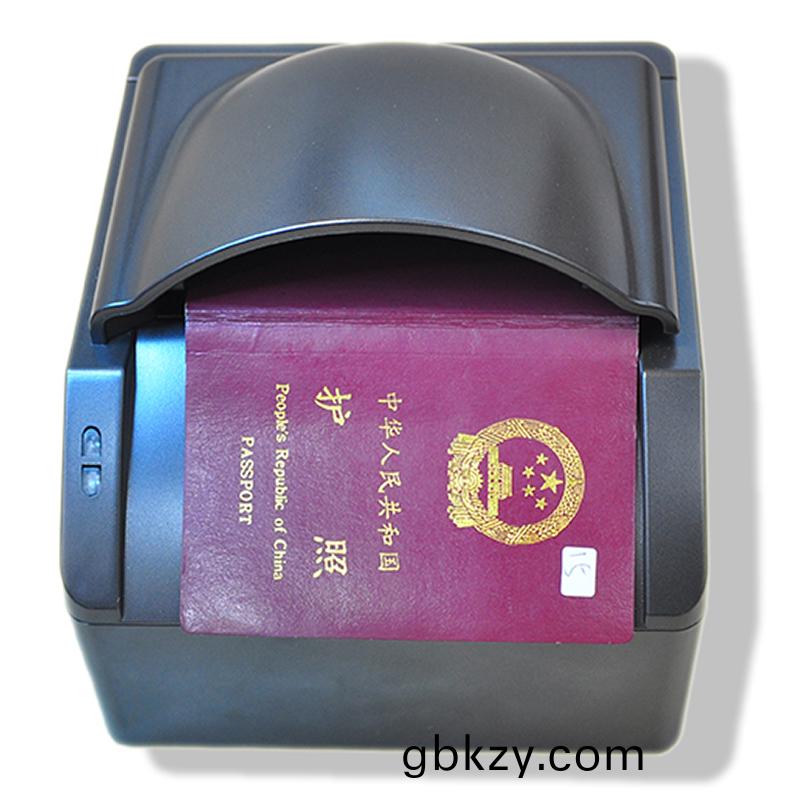

Boaozn Passport OCR identification scanner

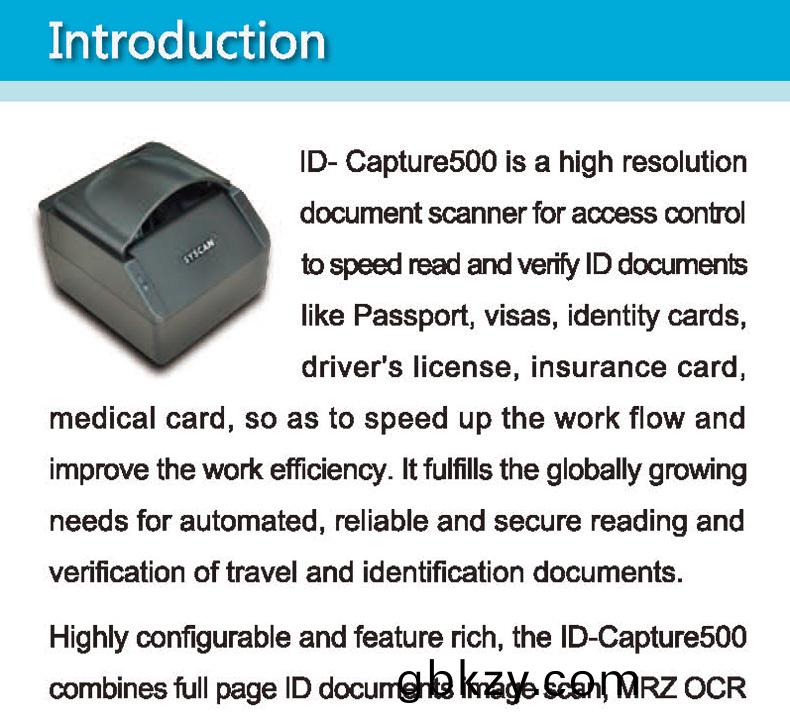

Introduction

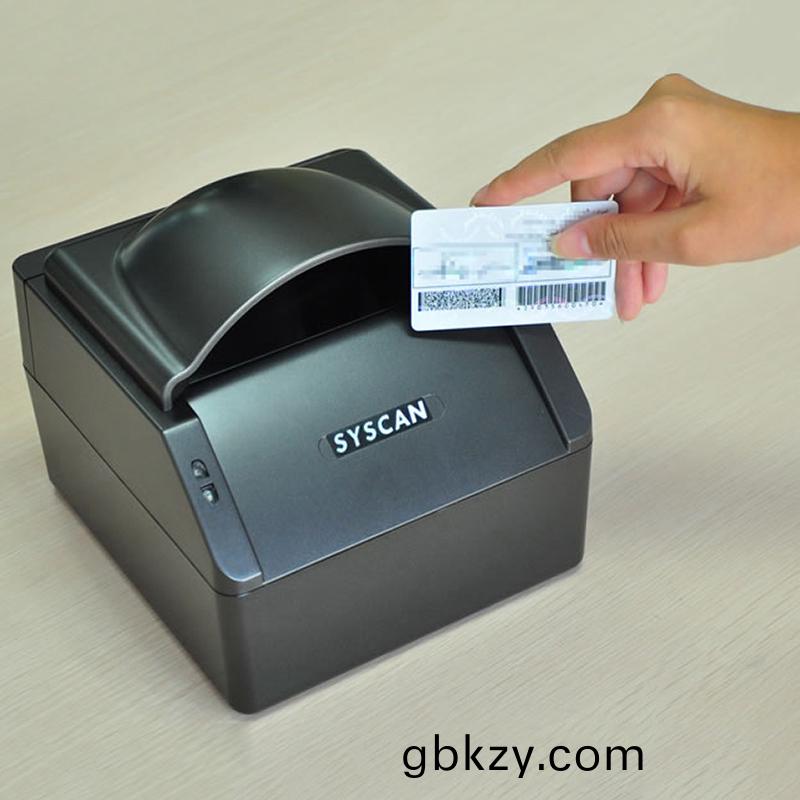

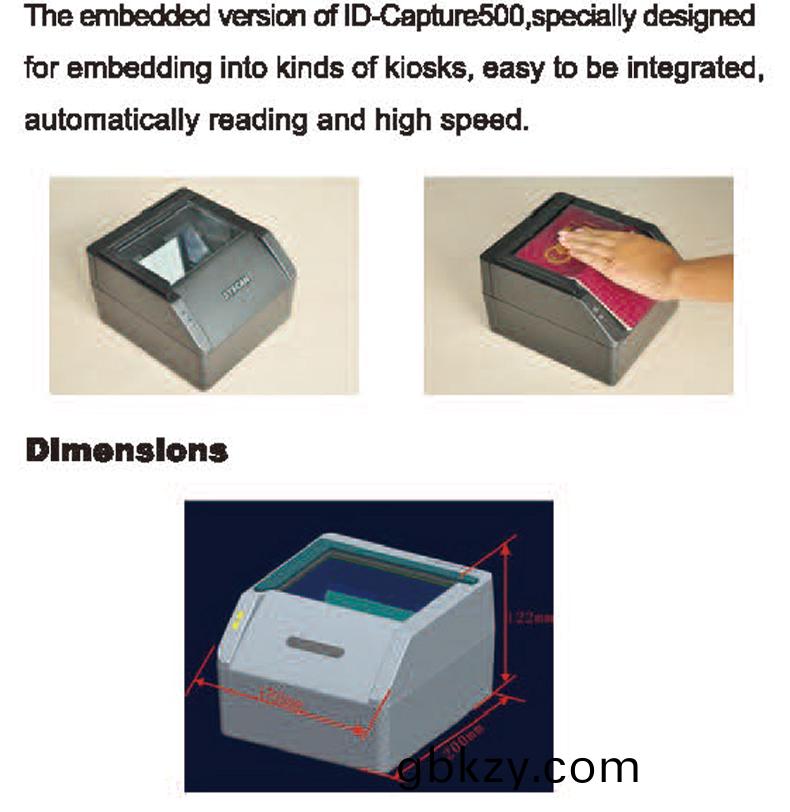

Embedded ID-Capture500
Embedded ID- Capture500 is specially designed for embedding into kinds of kiosks, easy to integrate, automatically reading and high speed.
This is a high resolution document scanner for access control to speedread and verify ID documents like Passport, visas, identity cards, driver’s license, insurance card, medical card, so as to speed up the work flow and improve the work efficiency. It fulfills the globally growing needs for automated
reliable and secure reading and verification of travel and identification documents.

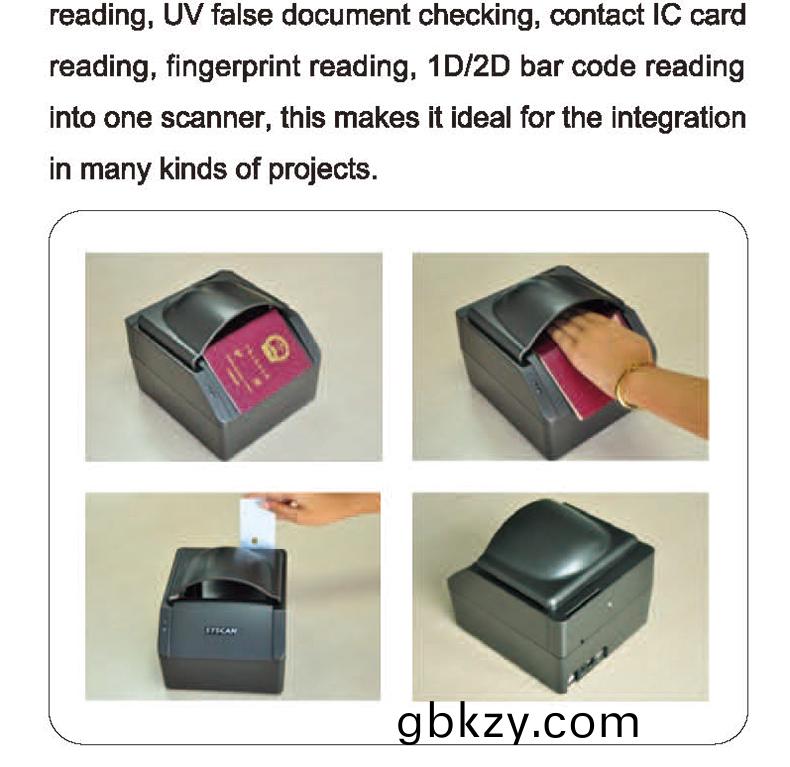

Highly configurable and feature rich, the Embedded ID-Capture500 combines full page ID documents image scan, MRZ OCR reading, UV false document checking, contact IC card reading, fingerprint reading, 1D/2D bar code reading into one scanner, this makes it ideal for the integration in many kinds of projects
|

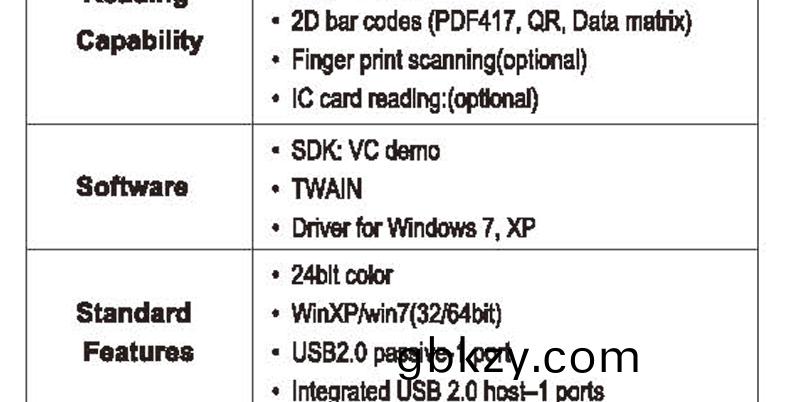

Items |
Specification |
|
Standard Features |
• 24bit color • WinXP/win7 (32/64bit) |
|
• USB2.0 passive-1 port • Integrated USB 2.0 host–1 ports |
|
|
Software |
• SDK: VC demo • TWAIN |
|
• Driver for Windows 7, XP |
|
|
Reading Capability |
• ICAO 9303 compliant 2 and 3 line MRZ • 1D bar codes |
|
• 2D bar codes (PDF417, QR, Data matrix) • Finger print scanning(optional) |
|
|
• IC card reading:(optional) |
|
|

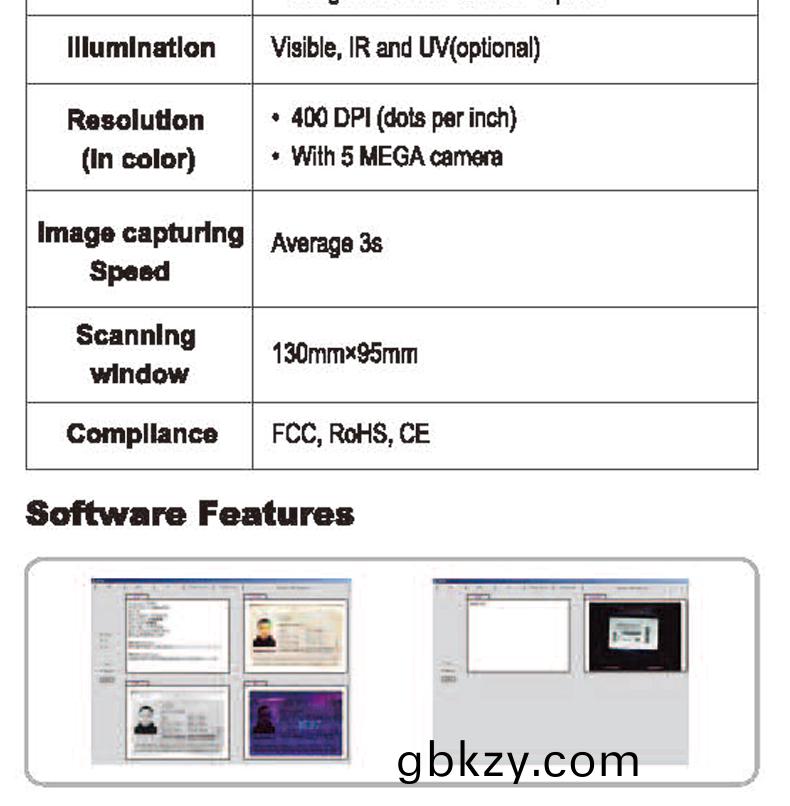

Illumination |
Visible, IR and UV(optional) |
|
Resolution (in color) |
• 400 DPI (dots per inch) • With 5 MEGA camera |
|
Scanning window |
130mm×95mm |
|
Compliance |
FCC, RoHS, CE |

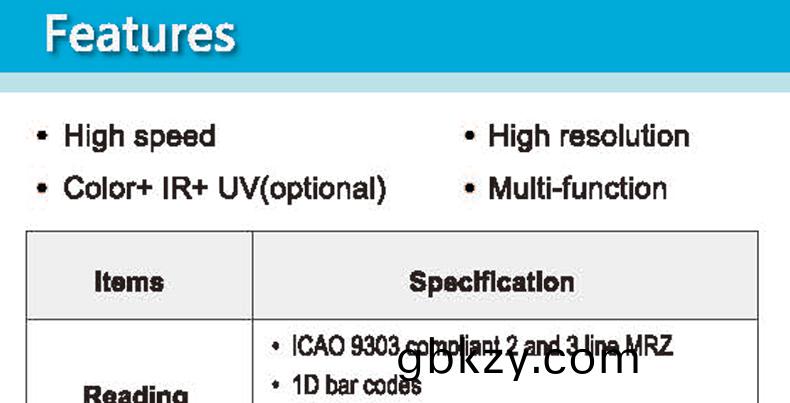

Features

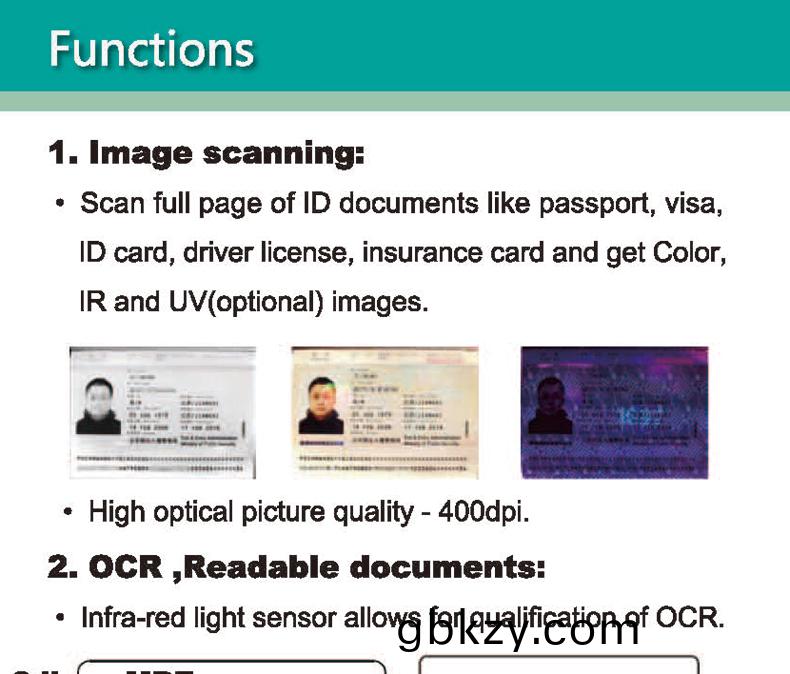

1. Image scanning:

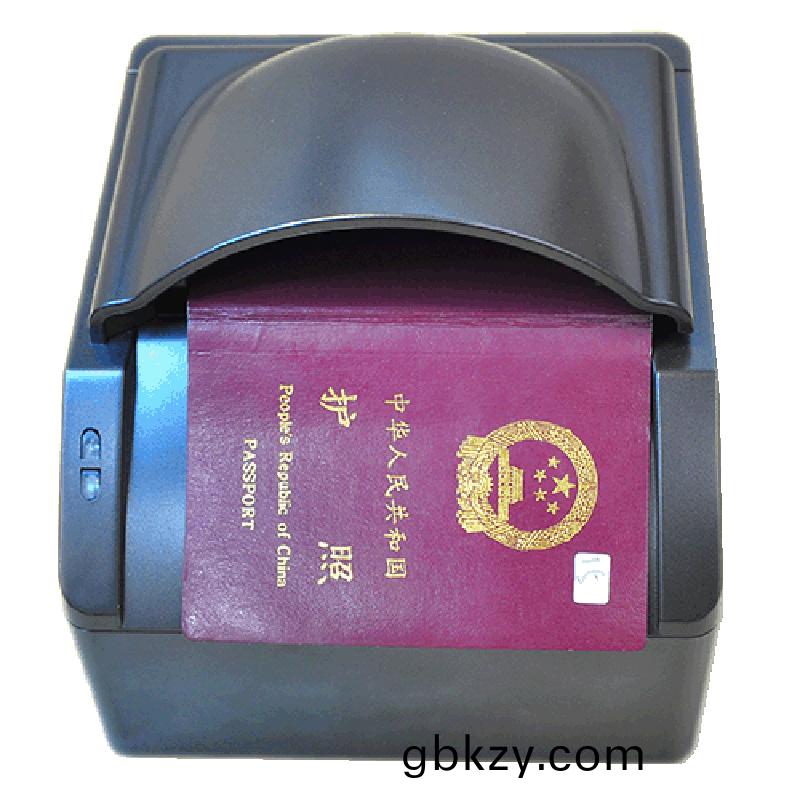

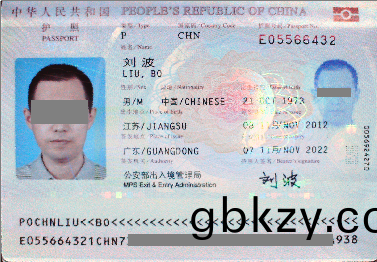

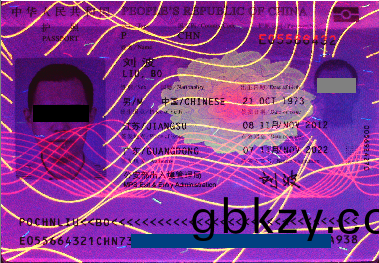

• Scan full page of ID documents like passport, visa, ID card, driver license, insurance card and get Color, IR and UV(optional) images
• High optical picture quality - 400dpi
2. OCR ,Readable documents:
• ICAO Doc9303 (TD3 size) --Passport
• ICAO Doc9303 MRV --Visa

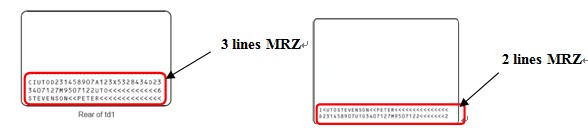

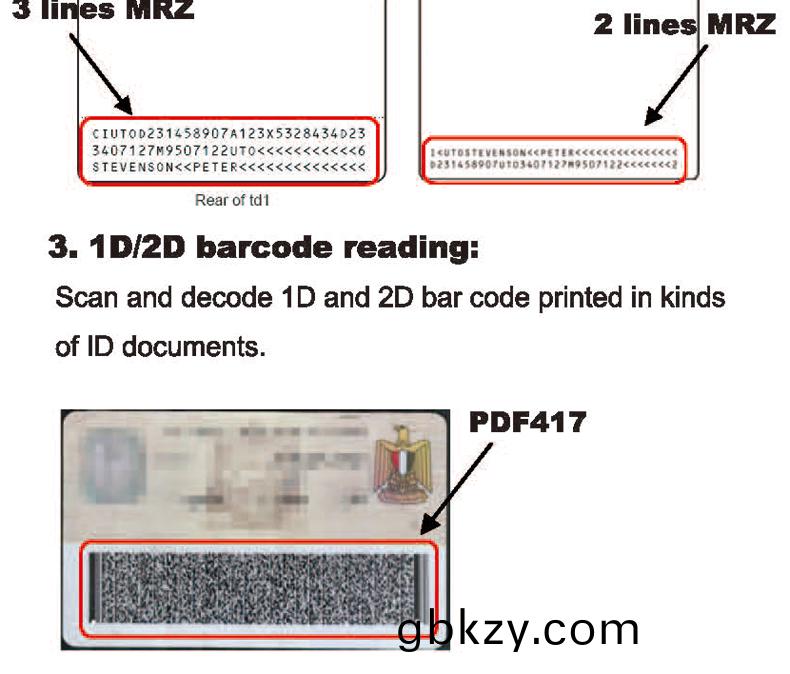

• ICAO Doc9303 (TD1 size)- 3 lines MRZ for ID card/Driver license (many country's national ID card or driver license printed with this 3 lines MRZ, like ID card in Italy, Latvia, Netherlands, Poland).
• Infra-red light sensor allows for qualification of OCR
3. 1D/2D barcode reading:
Many countries’s national ID card or driver license printed with PDF417 code, like ID card in
Colombia,Chile, Paraguay,Peru,Egypt...)
Scan and decode 1D and 2D bar code, including:
• 2D:PDF417,GM,QR,DM
• 1D:Code39,Code128,Coda bar,EAN-8,EAN-13,ITF

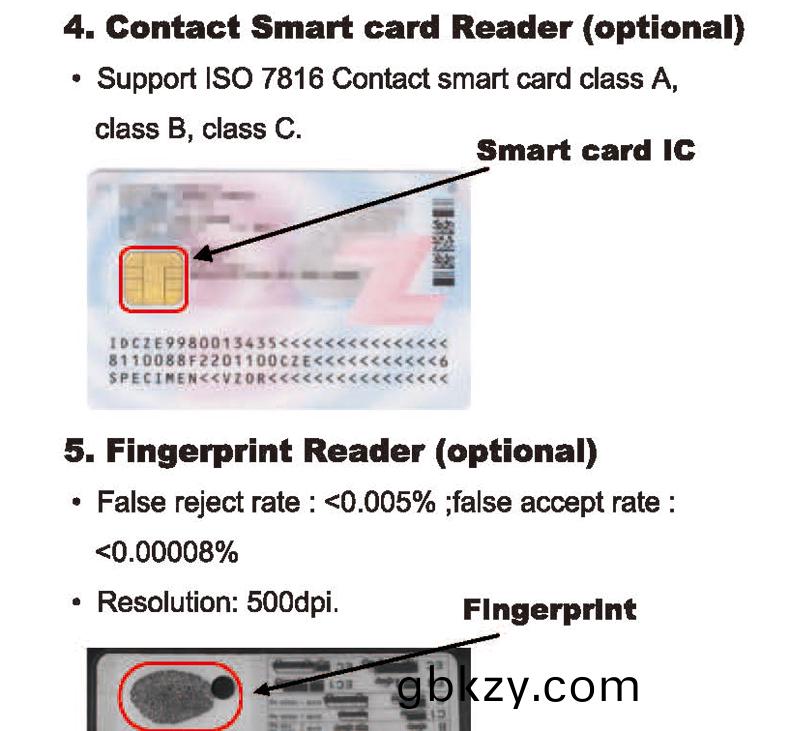

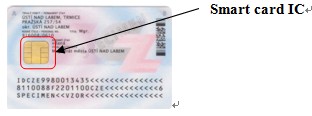

4. Contact Smart card Reader (optional)
• Support ISO 7816 Contact smart card class A, class B, class C
• 8 contacts - ISO 7816 location
•
|
|

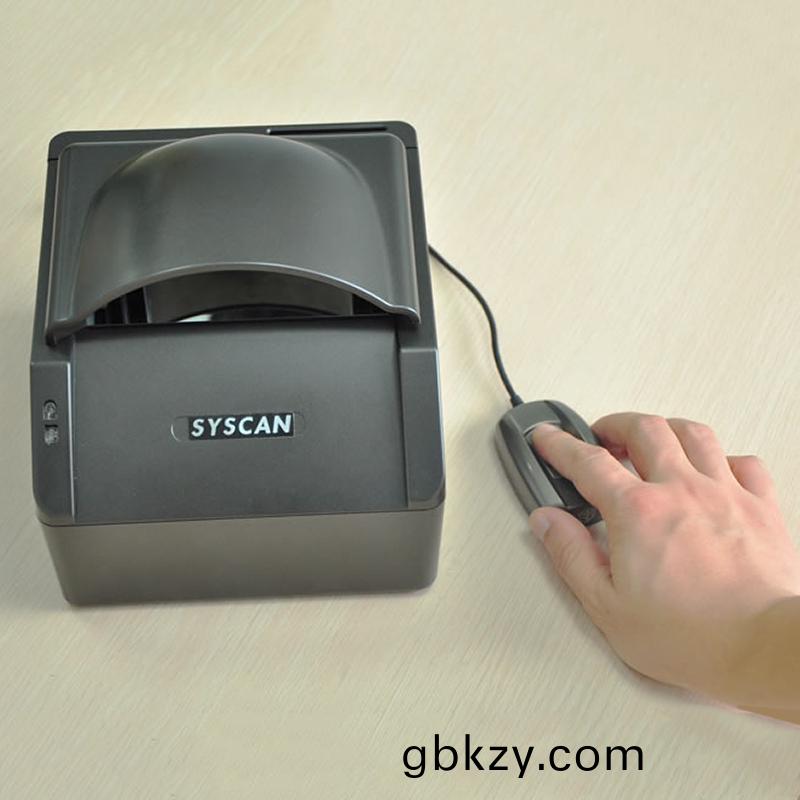

5. Fingerprint Reader (optional)
• The high quality optical fingerprint reader has the ability to identify many types of fingerprints.
• False reject rate : <0.005%
• false accept rate : <0.00008%
• Interface: USB
• Resolution: 500dpi
|

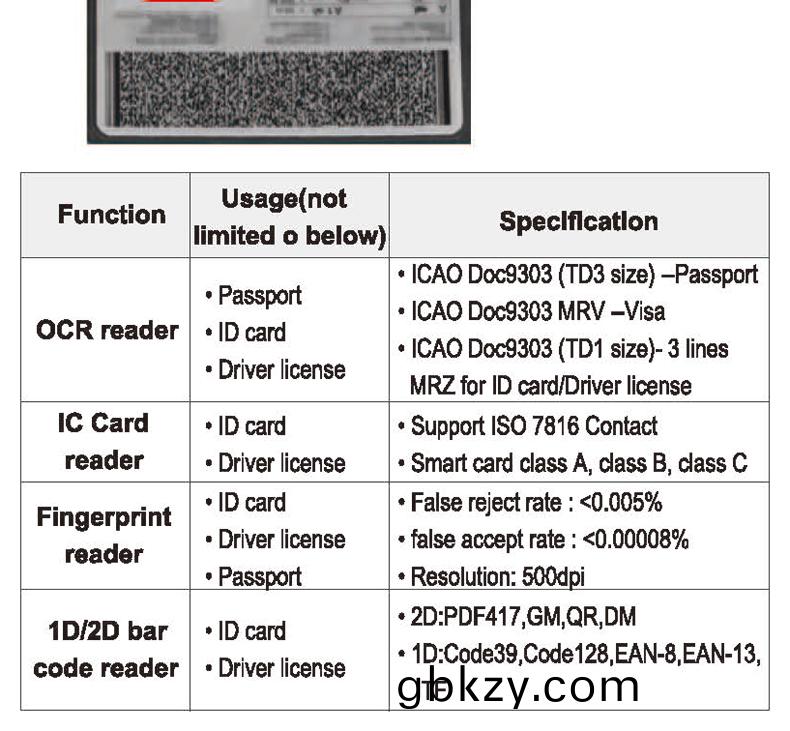

Function |
Usage |
Specification |
|
OCR reader |
• Passport • ID card • Driver license |
ICAO9303 2/3 line MRZ |
|
IC Card reader |
• Driver license |
• Support ISO 7816 Contact • Smart card class A, class B, class C |
|
Fingerprint reader |
• ID card • Driver license • Passport |
• False reject rate : <0.005% • false accept rate : <0.00008% • Interface: USB • Resolution: 500dpi |
|
1D/2D bar code reader |
• ID card • Driver license |
• 2D:PDF417,GM,QR,DM • 1D:Code39,Code128,Codabar,EAN-EAN-13,ITF |

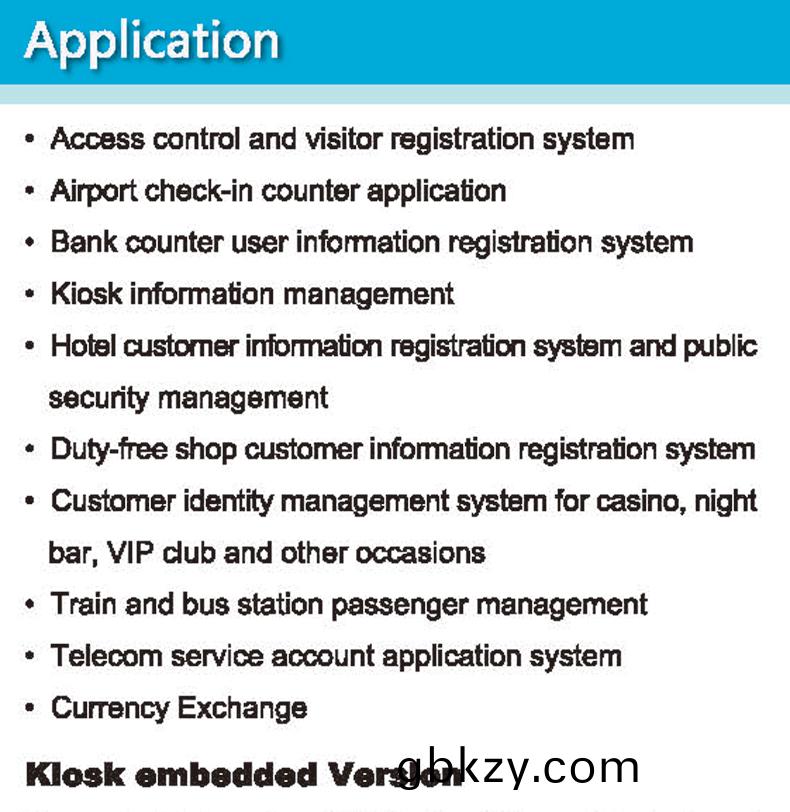

Application:
· Access control and visitor registration system
· Custom and check point management
· Airport check-in counter application
· Bank counter user information registration system
· Securities company customer management system
· Kiosk information management
· Restaurant front desk registration system
· Hotel customer information registration system and public security management
· Duty-free shop customer information registration system
· Customer identity management system for casino, night bar, VIP club and other occasions
· Train and bus station passenger management
· Telecom service account application system
· Official organization and NGO population program management
· Currency Exchange

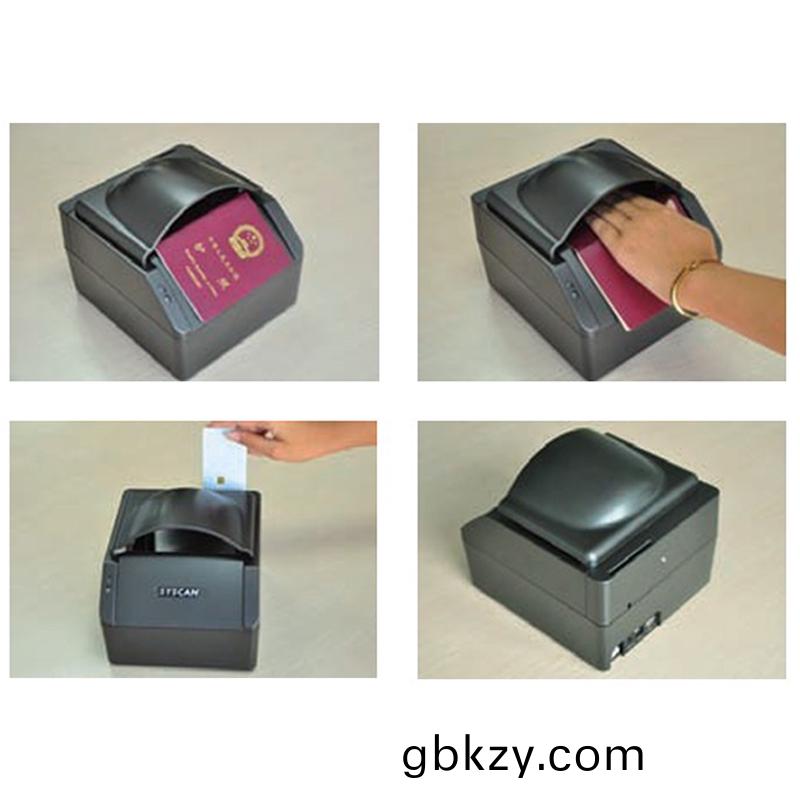

With automated document presence detection, recognition and reading process, the device is particularly easy to use.

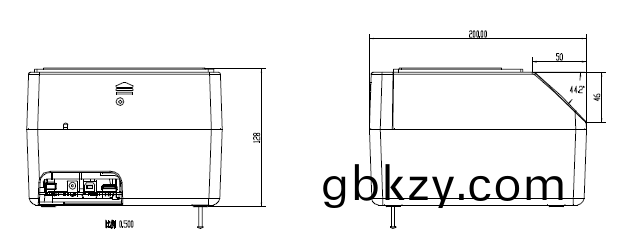

Dimensions
（
